Used 2009 Yamaha V-MAX MOTORCYCLE / SPORT CRUISER / 18K MILES / SUPER CLEAN! for sale $9,500 at Formula Imports in Charlotte NC 28227 1

Used 2009 Yamaha V-MAX MOTORCYCLE / SPORT CRUISER / 18K MILES / SUPER CLEAN!

Price: $9500

Type: Used
Year: 2009
Make: Yamaha
Model: V-MAX
Stock#: FC11327
Mileage: 18,200
Engine Size: V4 1679.0 ccm (102.45 cubic inches)
Exterior Color: Black
Interior Color: Black
VIN: JYAVP29EX9A001199

Used 2009 Yamaha V-MAX MOTORCYCLE / SPORT CRUISER / 18K MILES / SUPER CLEAN!

Price: $9,500

Print
Share
Used 2009 Yamaha V-MAX MOTORCYCLE / SPORT CRUISER / 18K MILES / SUPER CLEAN! for sale $9,500 at Formula Imports in Charlotte NC 28227 1
Save
Remove
Send To Phone
+1
Free CARFAX Report
Vehicle Details
Video

Video

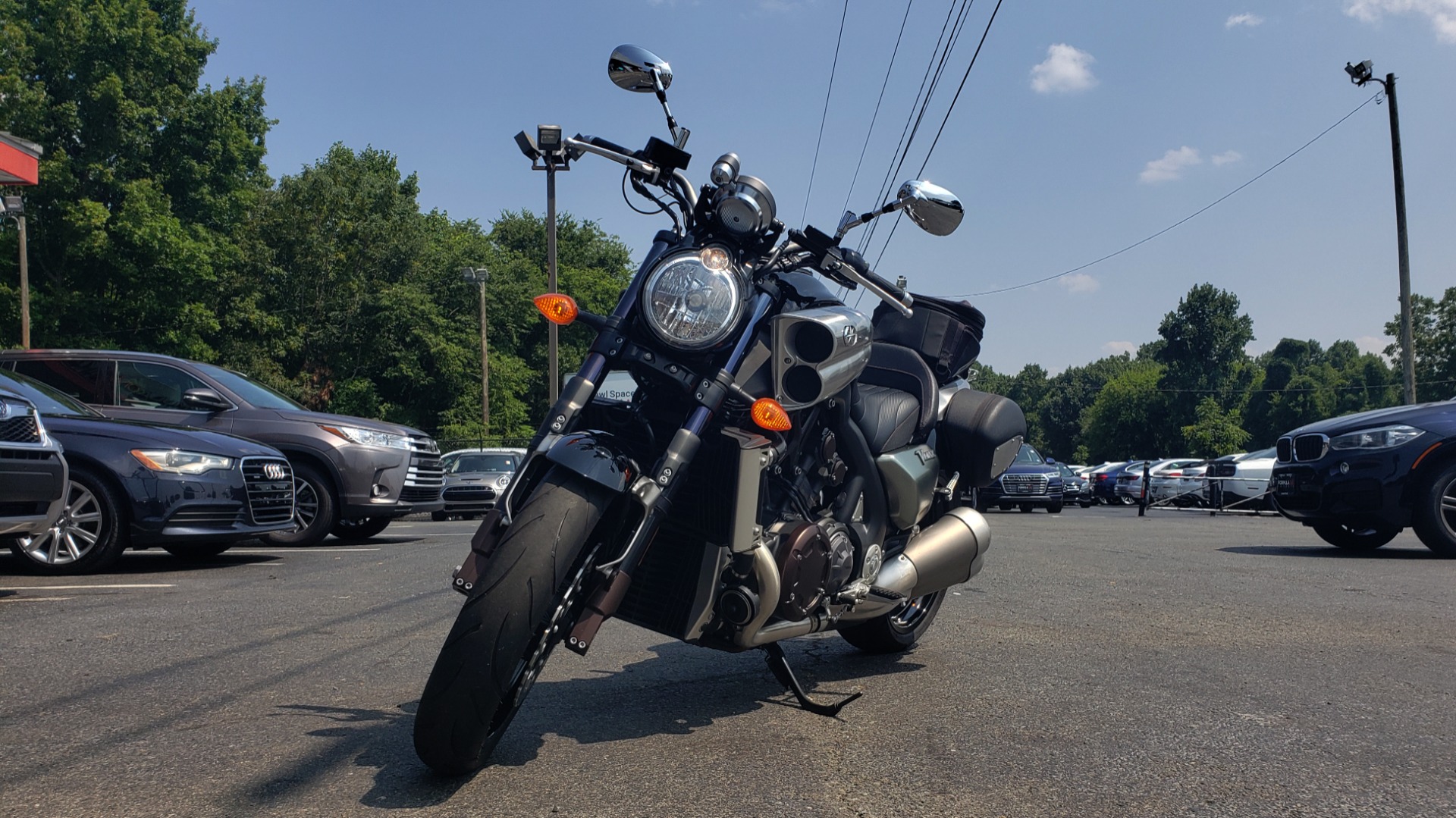

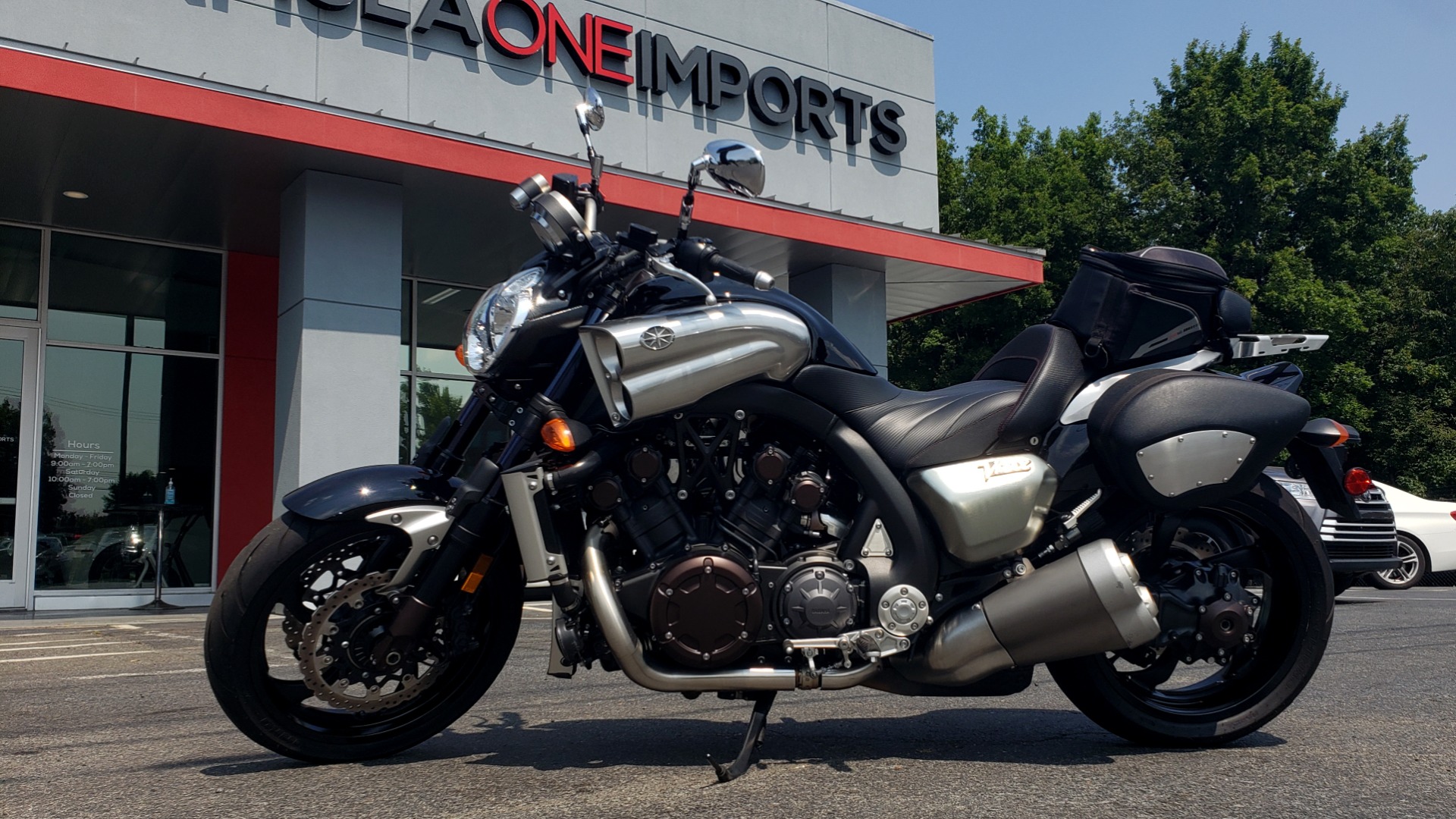

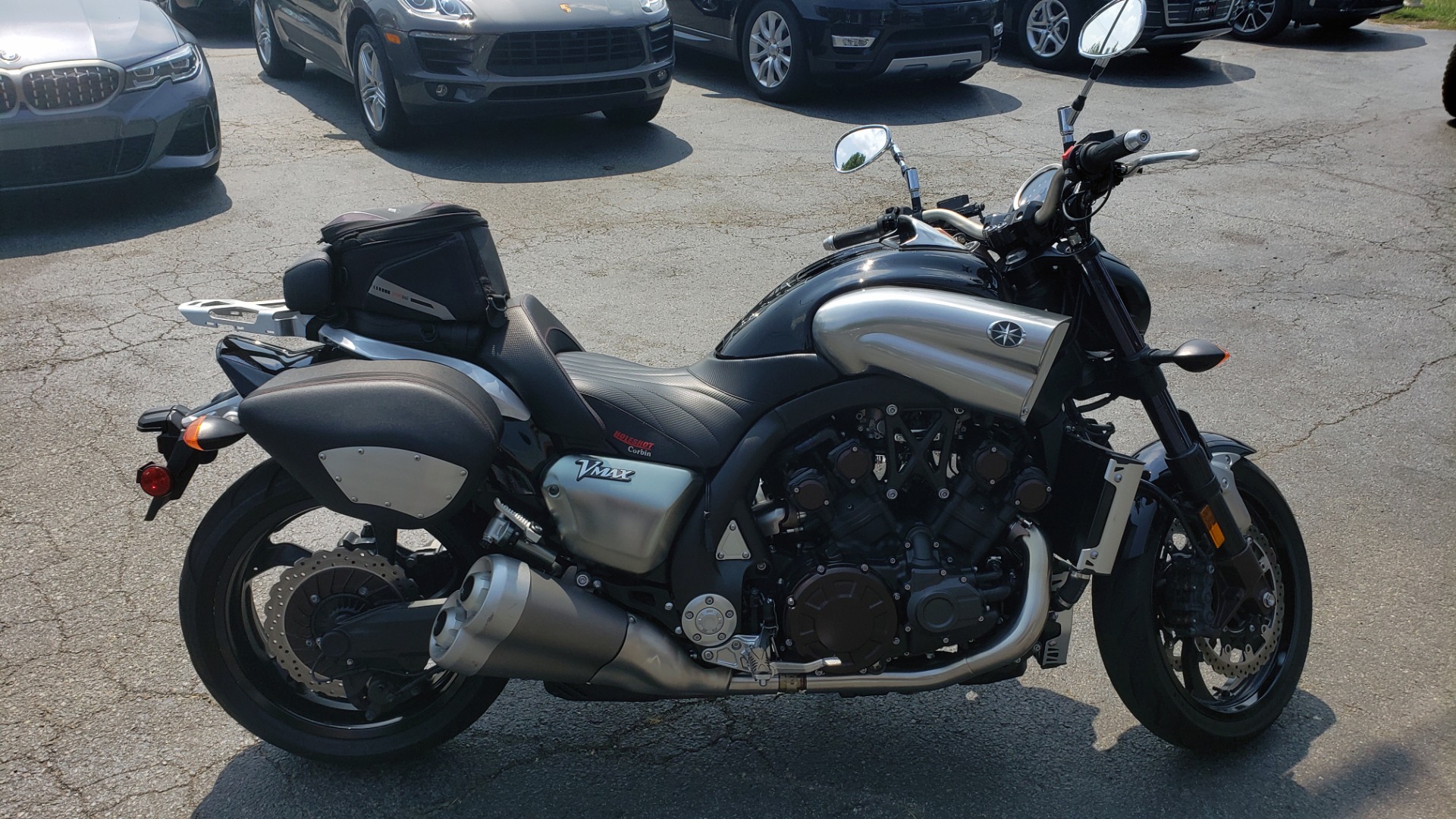

2009 YAMAHA V-MAXMOTORCYCLE

ONLY 18K MILES!

***NEW FRONT TIRE, JUST INSTALLED***


THIS MOTORCYCLE IS IN EXCELLENT CONDITION AND IS READY GO! IF YOUR WANT A FAST,
RELIABLE SPORT CRUISER, THIS IS IT!

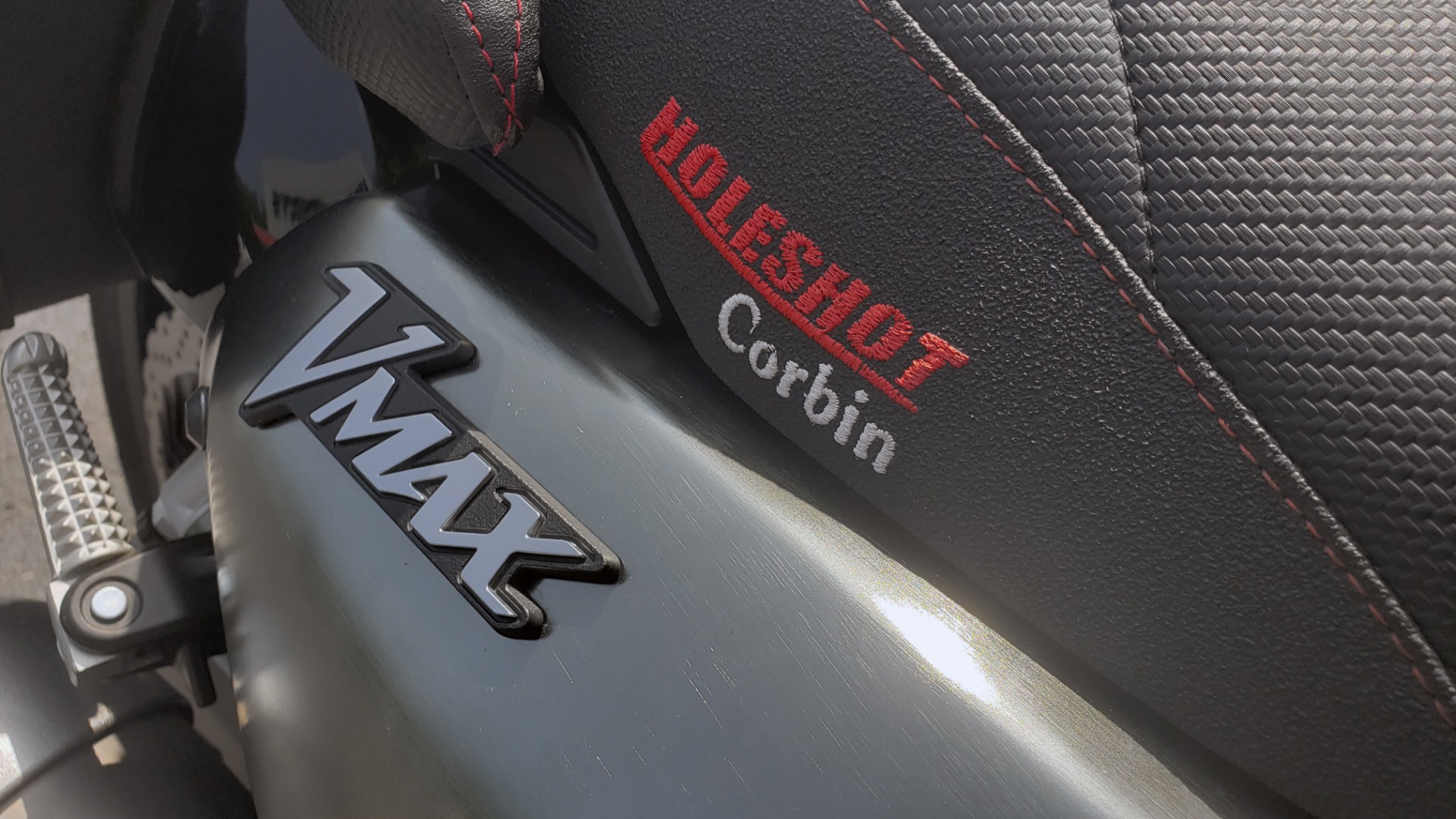

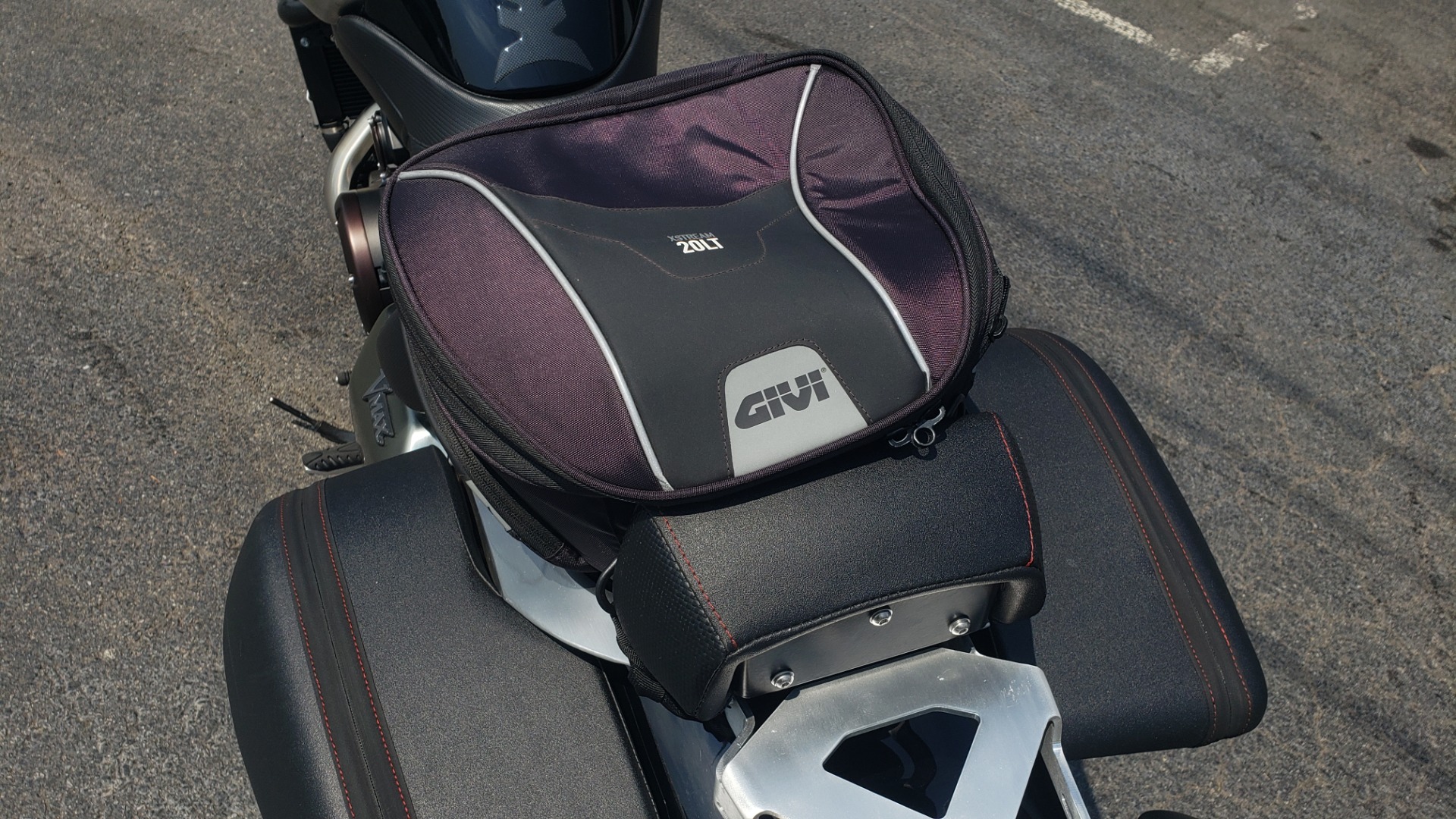

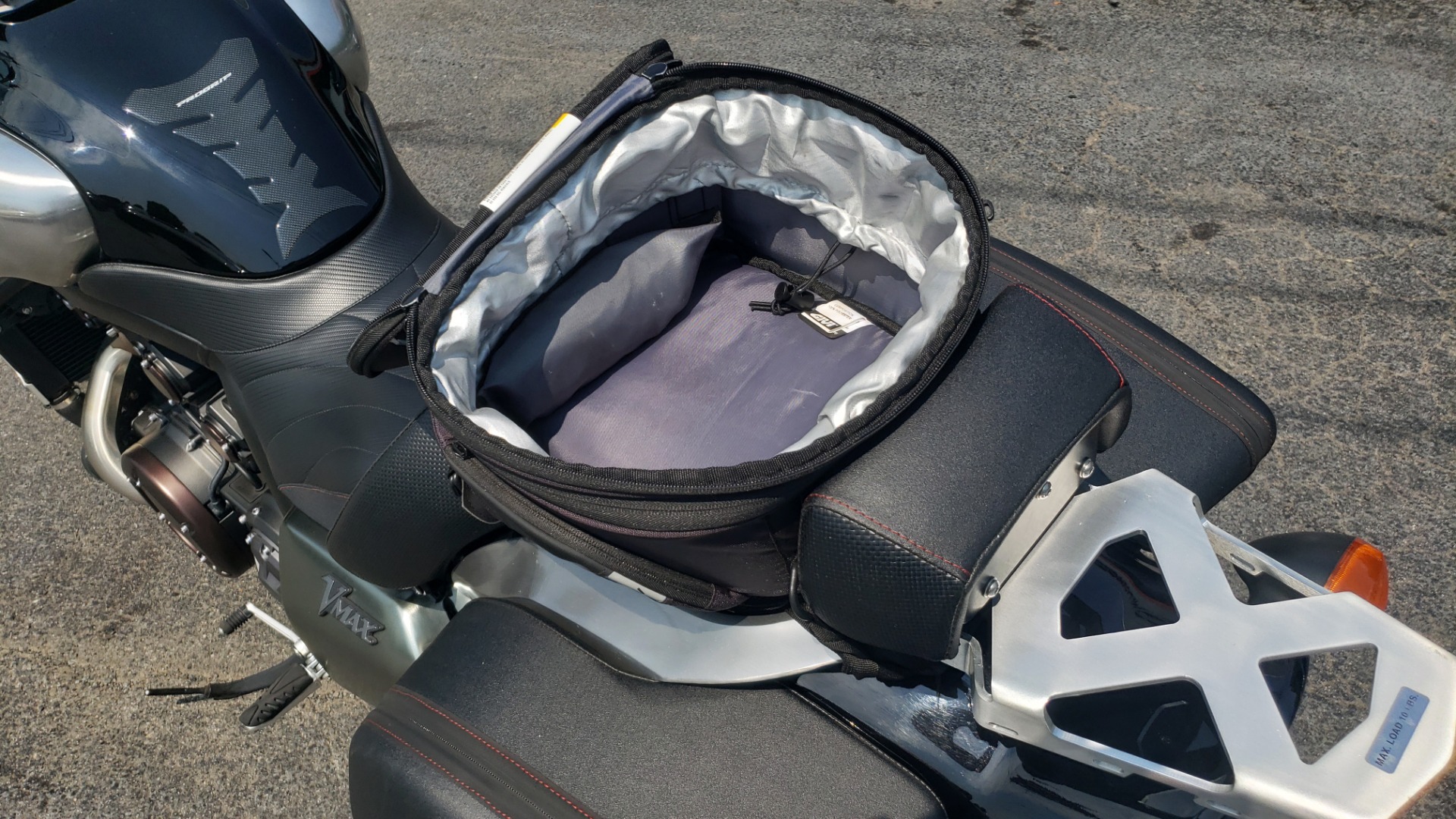

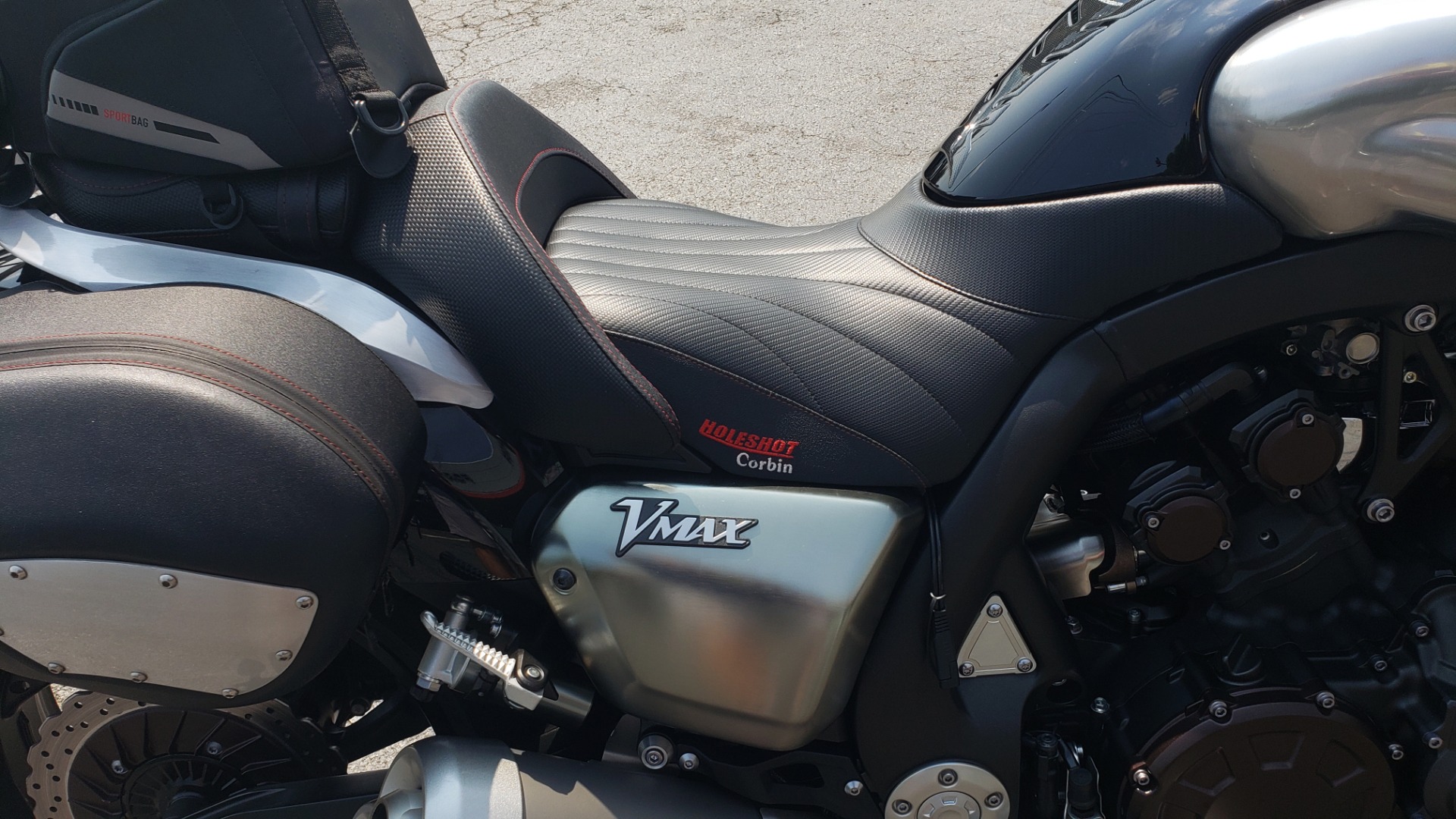

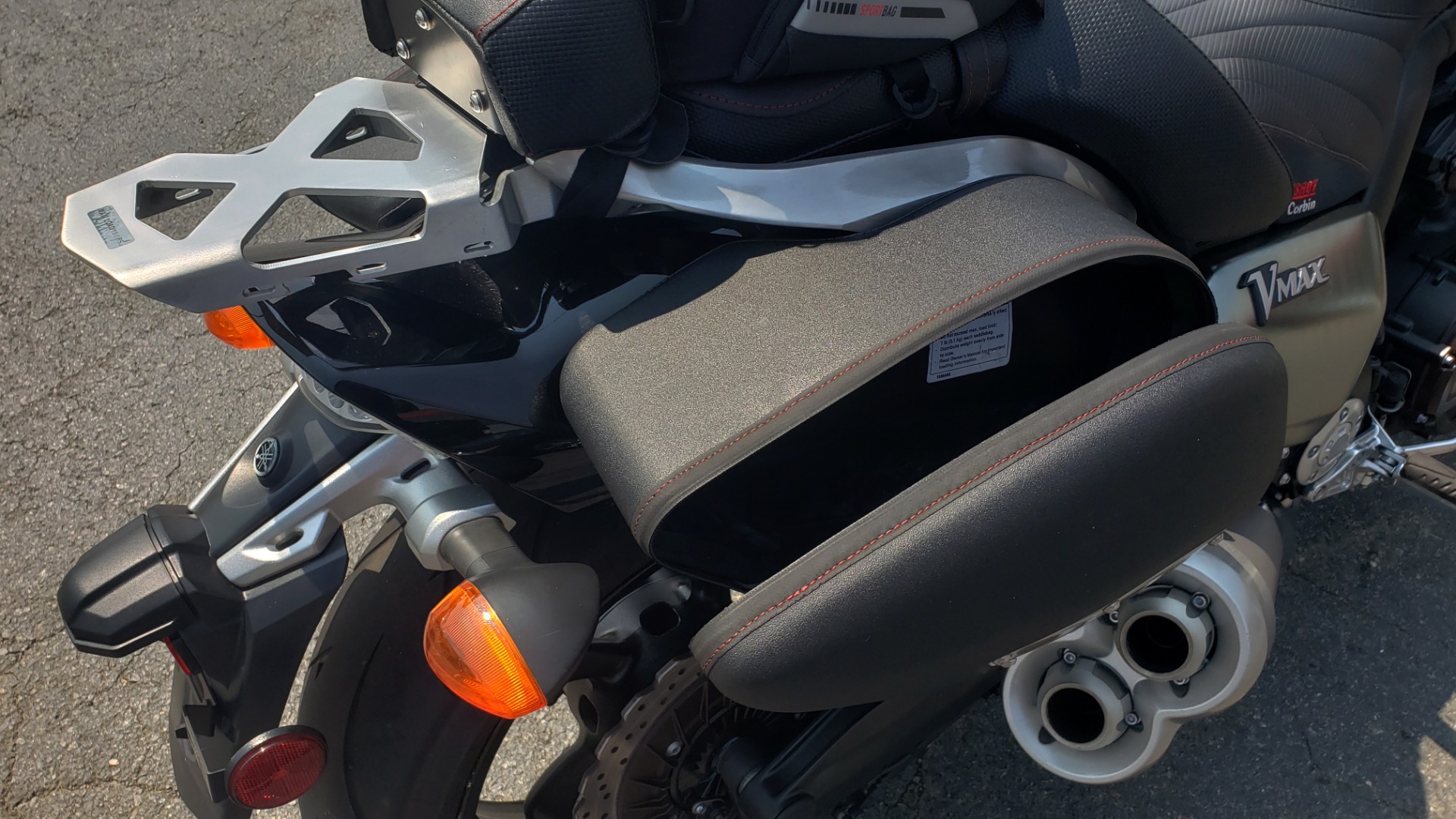

IT HAS BEEN UPGRADED WITH A CORBIN HOLESHOT SEAT, SPORT BAG AND SIDE/SADDLE BAGS

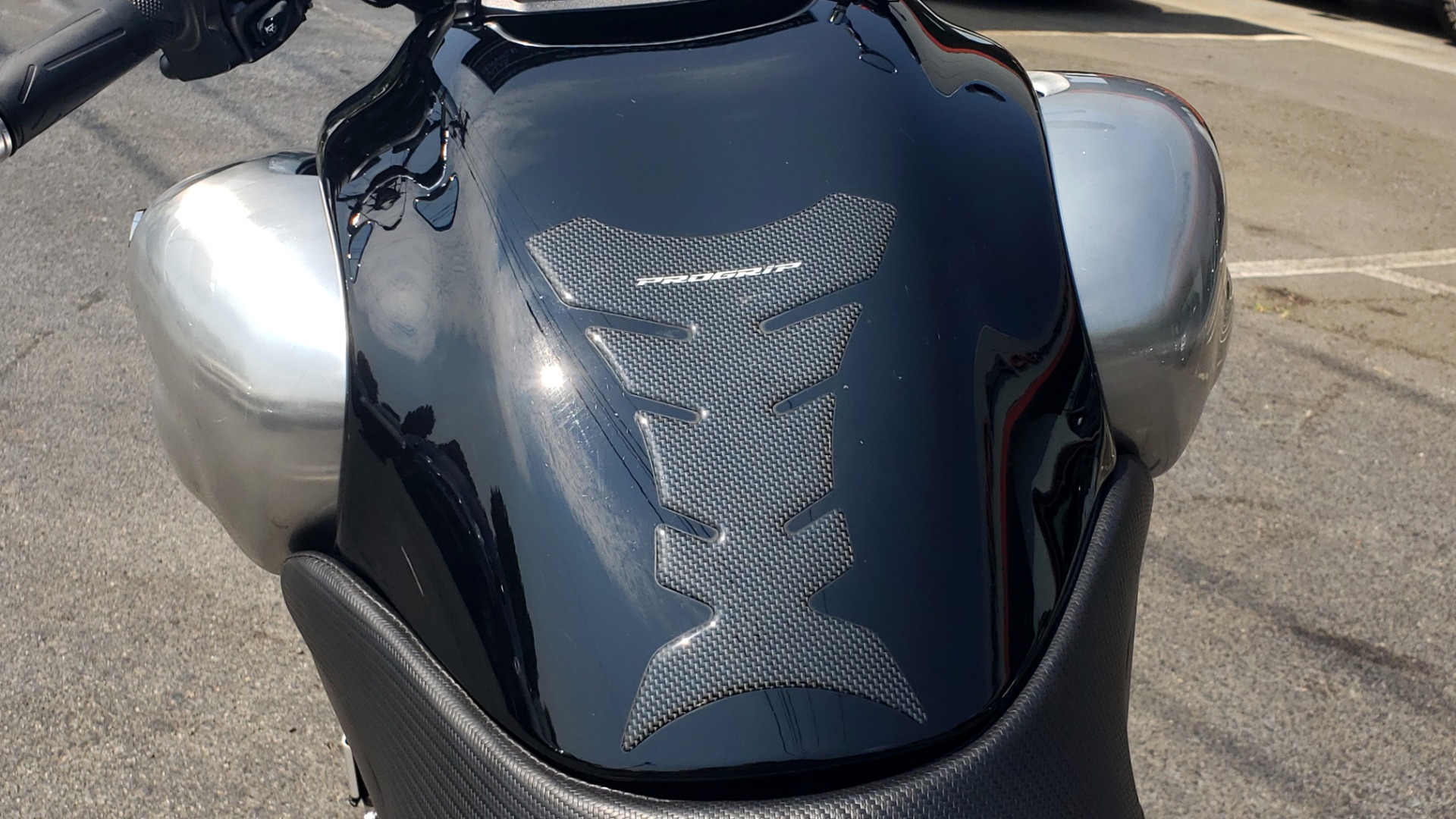

FOR ADDITIONAL STORAGE AND CARBON FIBER LOOK PROGRIP ON THE FUEL TANK.


FOR 2009 YAMAHA INTRODUCE THE NEW VMAX WHICH OFFERS THE VERY LATEST IN ADVANCED
DESIGN AND TECHNOLOGY FOR AN AWESOME ACCELERATION FEELING, COMBINED WITH
BODYWORK AND STYLING THAT RESPECTS AND ENHANCES THE ICONIC IMAGE OF THE ORIGINAL
MODEL. WITH ITS ALL NEW ENGINE AND CHASSIS, THE HIGH-TECH VMAX IS READY TO
CAPTURE THE IMAGINATION OF A WHOLE NEW GENERATION OF ADRENALINE ADDICTS, AND AT
THE SAME TIME INSPIRE THE MANY THOUSANDS OF LOYAL OWNERS WHO MADE THE ORIGINAL
MODEL SUCH A HUGE WORLDWIDE SUCCESS.
THE VMAX DEVELOPMENT TEAM IDENTIFIED A SERIES OF GOALS IN ORDER TO CREATE A
WORTHY SUCCESSOR TO THE LEGENDARY ORIGINAL MODEL. THE FOUR MAIN GOALS THAT THE
TEAM SET OUT TO ACHIEVE WERE:

AWESOME ACCELERATION FEELING TOGETHER WITH STRONG PERFORMANCE
DISTINCTIVE, PRECISE AND SHARP HANDLING
A SOPHISTICATED CHASSIS WITH UNIQUE BODYWORK
COMPLIANT TO EU3 REGULATIONS
WITH THESE MAIN AIMS IN MIND, THE DEVELOPMENT TEAM HAVE DEVELOPED AN ALL-NEW
POWERFUL STATE-OF-THE-ART 1,679CC V4 ENGINE WHICH FEATURES YAMAHAS G.E.N.I.C.H.
ELECTRONIC ENGINE CONTROL TECHNOLOGY SUCH AS YCC-I AND YCC-T; AN ALL-NEW LOW-PROFILE
DIAMOND-TYPE FRAME MANUFACTURED FROM CAST AND EXTRUDED ALUMINUM WHICH USES THE
ENGINE AS STRESSED MEMBER, AND DEVELOPED TO DELIVER THE RIGHT BALANCE OF RIGIDITY FOR
EXCELLENT STRAIGHT LINE STABILITY WITH SHARP AND PRECISE LEVELS OF CORNERING; AND A
HEAD-TURNING AND FORCEFUL DESIGN THAT IS BEST DESCRIBED AS BEING ENGINE MAXIMAL,
BODY MINIMAL, THAT IS DESIGNED TO FOCUS THE VIEWERS ATTENTION ON THE MUSCULAR V4
ENGINE. THE NEW ENGINE SATISFIES EU3 REGULATIONS WITH THE USE OF FUEL INJECTION AS
WELL AS A 3-WAY CATALYSER AND EXHAUST O2 SENSOR.

WITH ALL THIS BRUTE ENGINE FORCE, TOGETHER WITH THE MOST ADVANCED ENGINE AND FRAME
TECHNOLOGY, AS WELL AS RADICALLY STYLED BODYWORK, THE NEW VMAX DELIVERS AN
UNFORGETTABLE COMBINATION OF INNOVATION AND ACCELERATION.

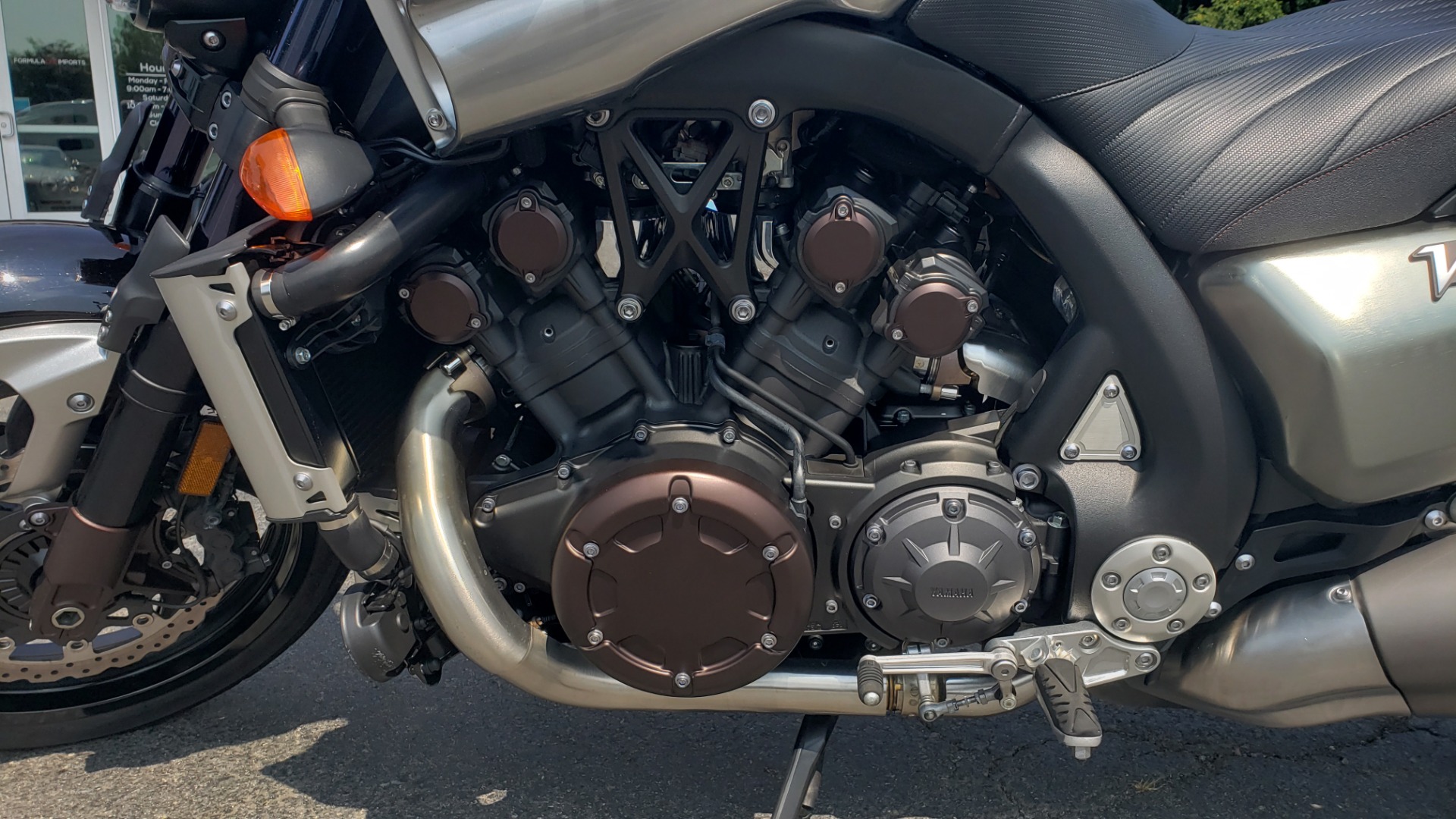

ALL-NEW LIQUID-COOLED 4-STROKE V4 ENGINE
POWERING THE NEW VMAX IS AN ALL-NEW 1,679CC LIQUID-COOLED 4-STROKE DOHC 65
DEGREE V4 ENGINE WHICH HAS BEEN DESIGNED TO OFFER AN UNFORGETTABLE ACCELERATION
EXPERIENCE CREATED BY HIGHER LEVELS OF POWER, AND AN IMPOSING DESIGN.

RUNNING WITH BORE X STROKE DIMENSIONS OF 90.0 X 66.0MM (COMPARED TO 76.0 X 66.0MM FOR THE EXISTING MODEL VMAX) AND FEATURING A COMPRESSION RATIO OF 11.3:1, THIS VISUALLY INTIMIDATING NEW POWERPLANT DEVELOPS 147.2 KW (200 PS) AT 9,000 RPM, TOGETHER WITH A HUGE TORQUE OUTPUT OF 166.8 NM (17.0 KG-M) AT 6,500 RPM.

THESE TRULY IMPRESSIVE POWER AND TORQUE FIGURES ARE THE RESULT OF MANY FACTORS, NOT
LEAST OF ALL BEING THE 40% INCREASE IN THE NEW ENGINES CUBIC CAPACITY. IN ADDITION TO
THE EXTRA CUBES, THE COMPLETELY REDESIGNED VMAX ENGINE ALSO BENEFITS FROM THE
APPLICATION OF SOME OF THE MOST ADVANCED YAMAHA ENGINE MANAGEMENT TECHNOLOGY
EVER SEEN IN THE CATEGORY.

YAMAHAS G.E.N.I.C.H. TECHNOLOGY IS AN ADVANCED ENGINEERING CONCEPT WHICH INVOLVES
THE APPLICATION OF CUTTING-EDGE ELECTRONIC CONTROL TECHNOLOGY IN ORDER TO REALIZE THE
DUAL GOALS OF ACHIEVING INCREASED PERFORMANCE AND ENHANCING THE RIDING EXPERIENCE.

THE NEW VMAX BENEFITS FROM THIS ADVANCED YAMAHA G.E.N.I.C.H TECHNOLOGY WITH
FEATURES SUCH AS YCC-I (YAMAHA CHIP CONTROLLED INTAKE) AND YCC-T (YAMAHA CHIP
CONTROLLED THROTTLE) WHICH ARE KEY FACTORS IN ACHIEVING THE NEW ENGINES HIGH LEVELS
OF POWER. THIS NEW HIGH-TECH ENGINE IS THE FIRST YAMAHA V4 TO BE EQUIPPED WITH A
SOPHISTICATED NEW FUEL INJECTION SYSTEM, WHICH, TOGETHER WITH THE YCC-I AND YCC-T,
ENSURES THAT THE POWERFUL 65-DEGREE V4 ENGINE IS FULLY EQUIPPED TO DELIVER PREVIOUSLY
UNIMAGINABLE LEVELS OF STANDING-START AND ROLL-ON ACCELERATION. BUT THE ENGINE OFFERS
A WHOLE LOT MORE THAN AWE-INSPIRING ACCELERATION FEELING, AND ADVANCED CHIP-
CONTROLLED TECHNOLOGY. IT NOT ONLY DELIVERS OUTSTANDING STRAIGHT-LINE PERFORMANCE,
BUT IT ALSO ENSURES INSTANT PICK-UP AT ALL ENGINE SPEEDS, AND OFFERS REMARKABLE
PERFORMANCE RIGHT ACROSS THE RPM RANGE, MAKING THE NEW VMAX A TOP PERFORMER ON
BOTH THE STRIP AND THE OPEN ROAD.

COMPACT PENT-ROOF COMBUSTION CHAMBERS
IN ORDER TO ACHIEVE THE RAPID AND EFFICIENT COMBUSTION PROCESSES THAT ENABLE THE
NEW VMAX ENGINE TO ACHIEVE ITS OPTIMAL PERFORMANCE POTENTIAL, OUR ENGINEERS HAVE
DESIGNED A NEW 4-VALVE PENT-ROOF COMBUSTION CHAMBER. FOR SUCH A LARGE CAPACITY
ENGINE OF 1,679CC WITH ITS MASSIVE 90MM BORES, THESE NEW HIGH-EFFICIENCY
COMBUSTION CHAMBERS ARE REMARKABLY COMPACT, AND THEIR SPACE-SAVING DESIGN HAS
BEEN FACILITATED BY THE INTRODUCTION OF AN INGENIOUS NEW CAMSHAFT DRIVE SYSTEM.

ON A CONVENTIONAL DOHC ENGINE, THE INTAKE AND EXHAUST CAMSHAFTS ARE USUALLY
DRIVEN BY ONE CHAIN, BUT IN ORDER TO CREATE AN EVEN MORE COMPACT CYLINDER HEAD,
YAMAHAS ENGINEERS HAVE DESIGNED AN ALL-NEW SYSTEM IN WHICH THE INTAKE CAMSHAFT
IS DRIVEN BY A CHAIN, WHILE THE EXHAUST CAMSHAFT IS DRIVEN BY A GEAR MECHANISM.
THIS INNOVATIVE COMBINED CHAIN AND GEAR CAM DRIVE MINIMIZES THE PITCH BETWEEN
THE INTAKE AND EXHAUST CAMSHAFTS, WHICH IN TURN PERMITS A MUCH MORE COMPACT
CYLINDER HEAD DESIGN.

4-1-2-4 EXHAUST SYSTEM WITH SHORT TITANIUM MUFFLERS
FOR EXCELLENT ALL-ROUND PERFORMANCE THE NEW VMAX RUNS WITH A NEW 4-1-2-4 EXHAUST
SYSTEM FEATURING SHORT, UPSWEPT MUFFLERS. AFTER LEAVING THE CYLINDERS, THE FOUR HEADER
PIPES FLOW INTO A SINGLE CHAMBER, WHERE THE SYSTEM SPLITS INTO A LEFT AND RIGHT SIDE
PIPE, AND THEN EACH OF THESE DIVIDES AGAIN TO GIVE A 4-1-2-4 SYSTEM.

AN 02 SENSOR (LAMBDA SENSOR) DETECTS OXYGEN LEVELS IN THE EXHAUST SYSTEM AND
REGULATES THE FUEL SUPPLY VIA THE FUEL INJECTION SYSTEM TO ENSURE THAT EMISSIONS ARE
MINIMIZED, WHILE A 3-WAY HONEYCOMB CATALYSER ENSURES THE VMAX EXCEEDS EU3
REGULATIONS.

THE FOUR SINGLE-EXPANSION MUFFLERS ARE SHORT AND UPSWEPT, AND EMIT A STRONG AND
PLEASING EXHAUST SOUND WITH A SPECIAL PULSING SENSATION THAT ANNOUNCES YOUR
PRESENCE. THE HIGH QUALITY SILENCERS ARE MANUFACTURED FROM LIGHTWEIGHT TITANIUM,
AND FINISHED IN SHOT BLAST TO COMPLEMENT THE MEAN AND MOODY LOOK OF THE BLACK
FRAME AND ENGINE.

ALL-NEW LARGE-CAPACITY 1,679CC LIQUID-COOLED 4-STROKE V4 ENGINE
MAX POWER 147.2 KW (200 PS) @ 9,000 RPM (IN FRANCE: 78.1 KW (106 PS) @ 5,250 RPM)
MAX TORQUE 166.8 NM (17.0 KG-M) @ 6,500 RPM (IN FRANCE: 145.2 NM (14.8 KG-M @ 5,000 RPM)
INNOVATIVE COMBINED CHAIN AND GEAR CAM DRIVE
COMPACT PENT-ROOF COMBUSTION CHAMBERS, 11.3:1 COMPRESSION
IRIDIUM SPARK PLUGS
NARROW VALVE ANGLE OF 29 DEGREES
COMPACT 65 DEGREE V BANK CONFIGURATION
FRONT REAR ENGINE DIMENSIONS 27MM LESS THE CURRENT VMAX
CENTRE CAMCHAIN KEEPS ENGINE WIDTH THE SAME AS CURRENT VMAX
LIGHTWEIGHT AND DURABLE ALUMINIUM FORGED PISTONS
FRACTURE-SPLIT (FS) CARBURIZED CON RODS
YCC-I YAMAHA CHIP CONTROLLED INTAKE FOR AWESOME ACCELERATION FEELING
YCC-T YAMAHA CHIP CONTROLLED THROTTLE FOR PRECISION CONTROL
FUEL INJECTION
LARGE CAPACITY AIRBOX

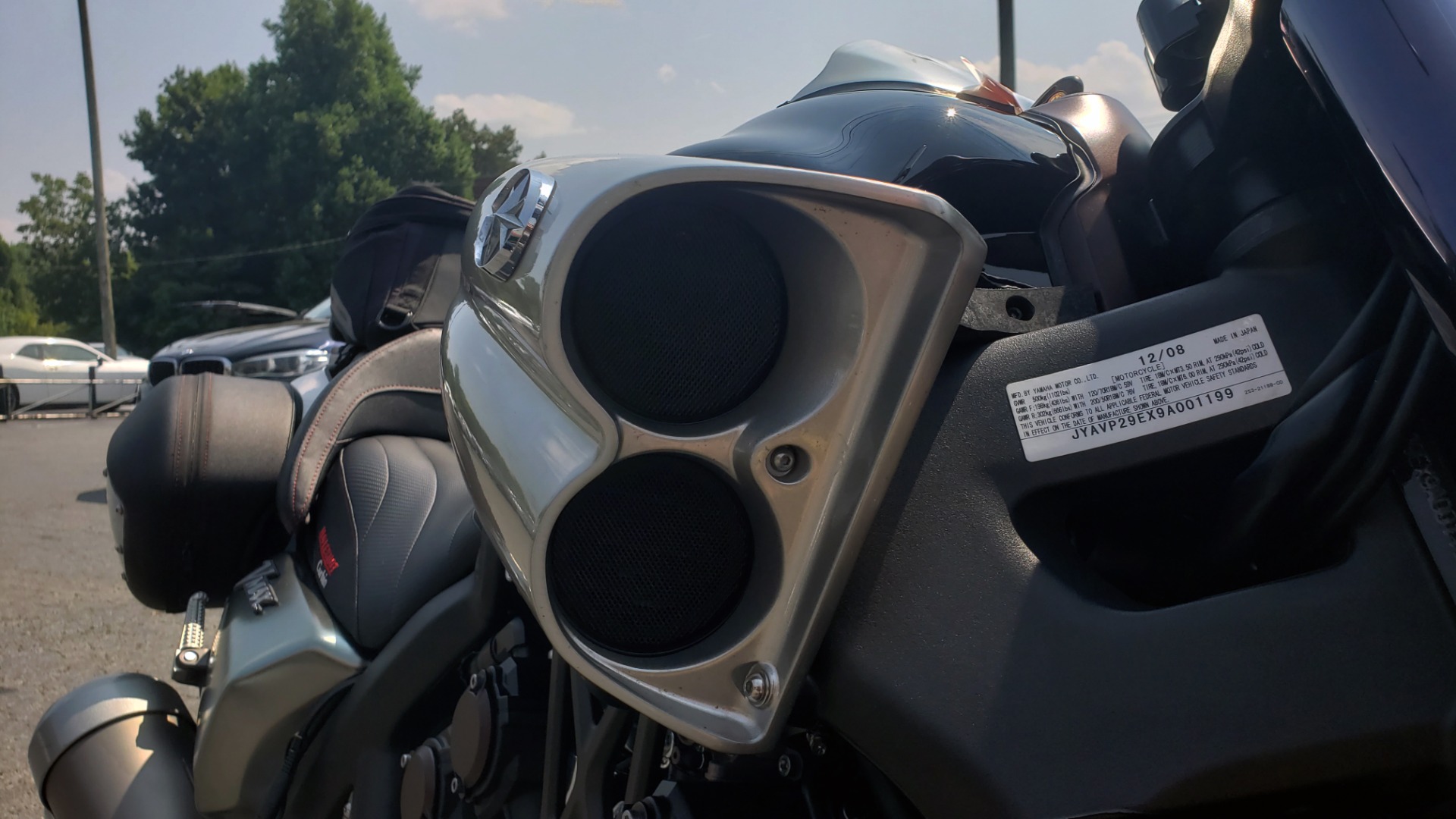

FRONT LEFT AND RIGHT SIDE-MOUNTED AIR INTAKES
SLIPPER CLUTCH
LOW-MAINTENANCE SHAFT DRIVE SYSTEM WITH COMPACT REAR GEAR CASE
4-1-2-4 EXHAUST SYSTEM
SHORT, UPSWEPT TITANIUM SILENCERS
MAGNESIUM ALLOY CLUTCH COVER, ACM COVER AND DRIVE SHAFT COVER
IMMOBILIZER

CHASSIS TECHNICAL HIGHLIGHTS
ALL-NEW DIAMOND-TYPE LOW-PROFILE ALUMINUM FRAME
LONGER 1,700MM WHEELBASE FOR OUTSTANDING STRAIGHT LINE STABILITY
LONGER SWINGARM ENSURES OPTIMAL ROAD-HOLDING DURING ACCELERATION
MASSIVE 52MM CONVENTIONAL FORKS WITH OXIDIZED TITANIUM COATING
LINK-TYPE MONOCROSS REAR SUSPENSION
FULLY-ADJUSTABLE FRONT AND REAR SUSPENSION
320MM DUAL FRONT WAVE-TYPE BRAKE DISCS WITH 6-PISTON RADIAL-MOUNTED CALIPERS

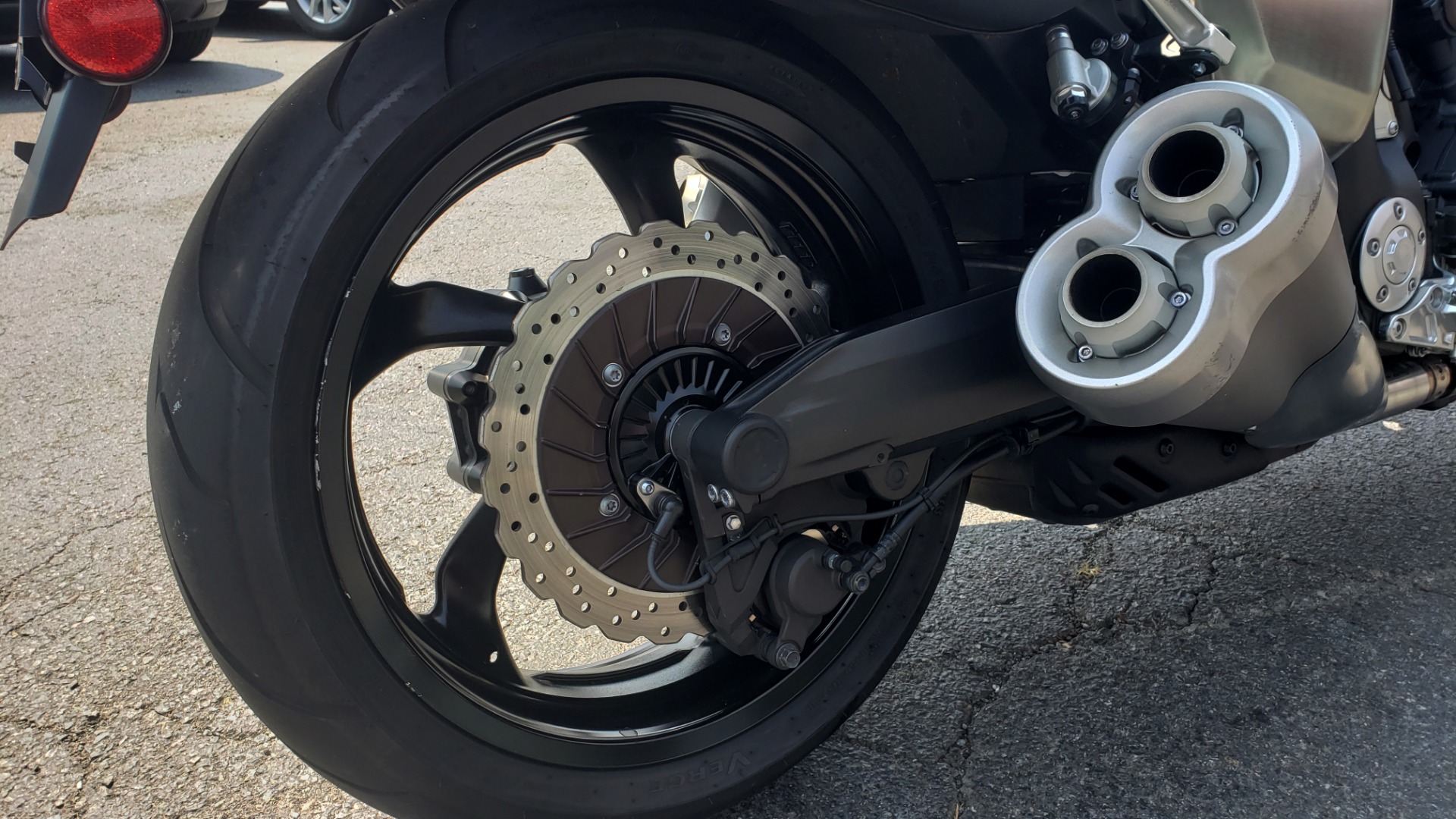

298MM REAR BRAKE DISC
LINEAR CONTROLLED ABS WITH COMPACT ONE-PIECE ECU/HYDRAULIC UNIT
HIGHLY-EFFICIENT 2-PIECE RADIATOR, CURVED UPPER, FLAT LOWER WITH COOLING FAN
UNDER SEAT FUEL TANK AND LIGHTWEIGHT BODYWORK FOR INCREASED MASS CENTRALISATION

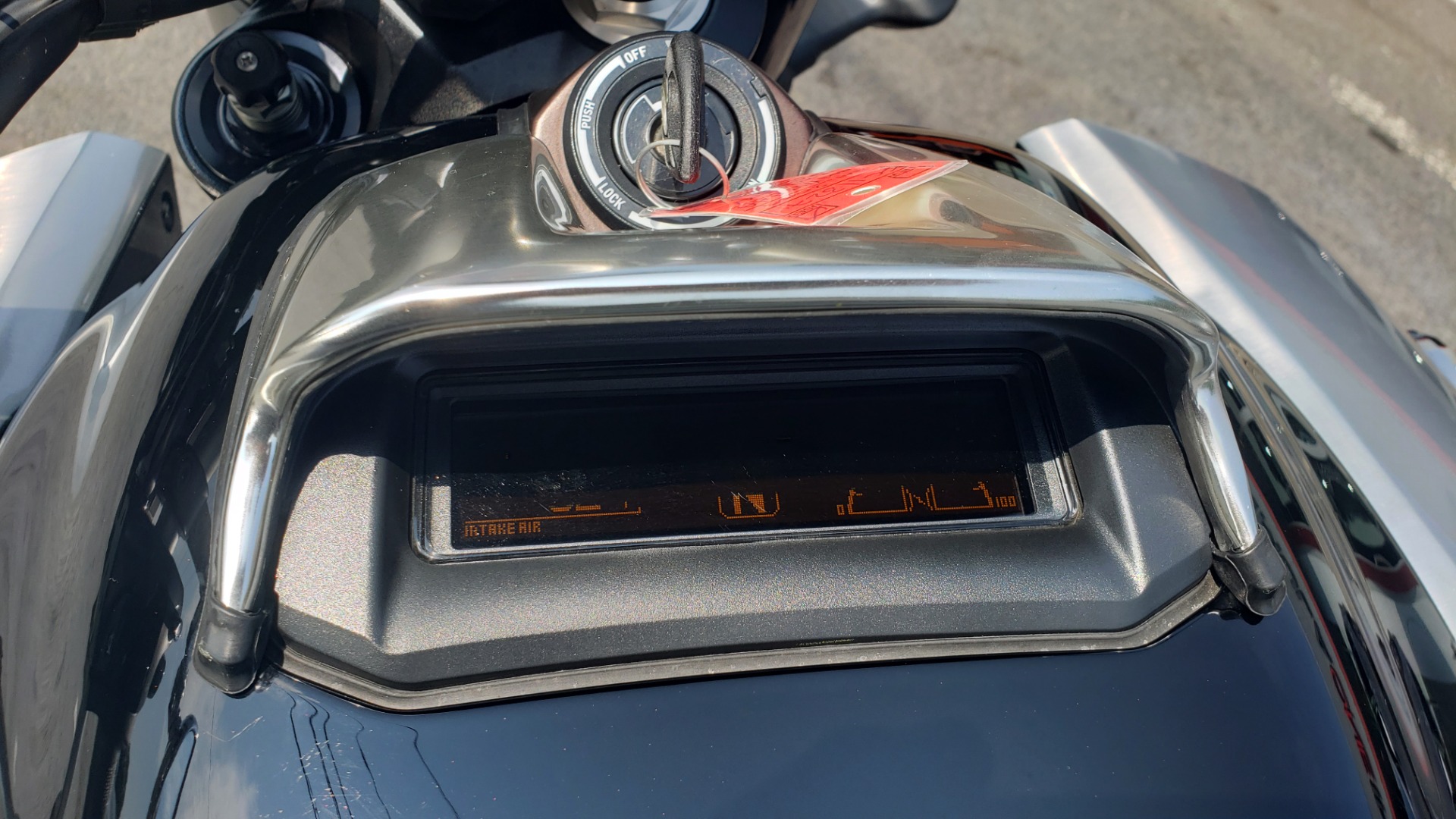

TANK-MOUNTED MULTI-FUNCTION ORGANIC ELECTRO-LUMINESCENT OEL INSTRUMENT PANEL
MUSCULAR NEW NEXT-GENERATION VMAX BODYWORK
HIGH-SPECIFICATION COMPONENTS AND LIGHTWEIGHT MATERIALS

ENGINE
TYPE: LIQUID COOLED, 4-STROKE, DOHC, 4-VALVE, V-TYPE 4-CYCLINDER
DISPLACEMENT: 1,679CC
BORE & STROKE: 90.0 X 66.0 MM
COMPRESSION RATIO: 11.3:1
MAX. POWER: 147.2 KW (200 PS) @ 9,000 RPM
MAX. TORQUE: 166.8 NM (17.0 KG-M) @ 6,500 RPM
LUBRICATION: WET SUMP
CARBURETOR / FUEL SUPPLY: FUEL INJECTION
CLUTCH TYPE: WET, MULTIPLE-DISC DIAPHRAGM SPRING
IGNITION: T.C.I.
STARTER SYSTEM: ELECTRIC
TRANSMISSION: CONSTANT MESH, 5-SPEED
FINAL TRANSMISSION: SHAFT DRIVE
PRIMARY REDUCTION RATIO: 1.509
SECONDARY REDUCTION RATIO: 3.082

DIMENSIONS
OVERALL LENGTH: 2,395 MM
OVERALL WIDTH: 820 MM
OVERALL HEIGHT: 1,190 MM
SEAT HEIGHT: 775 MM
WHEELBASE: 1,700 MM
MIN. GROUND CLEARANCE: 140 MM
WET WEIGHT (INCLUDING OIL AND FULL FUEL TANK): 310 KG
FUEL TANK CAPACITY: 15 LITRES
OIL CAPACITY: 5.9 LITRES
